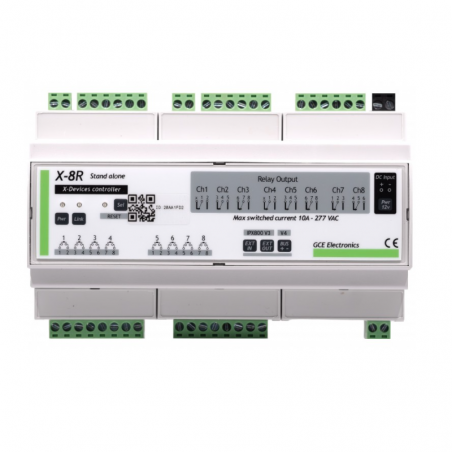

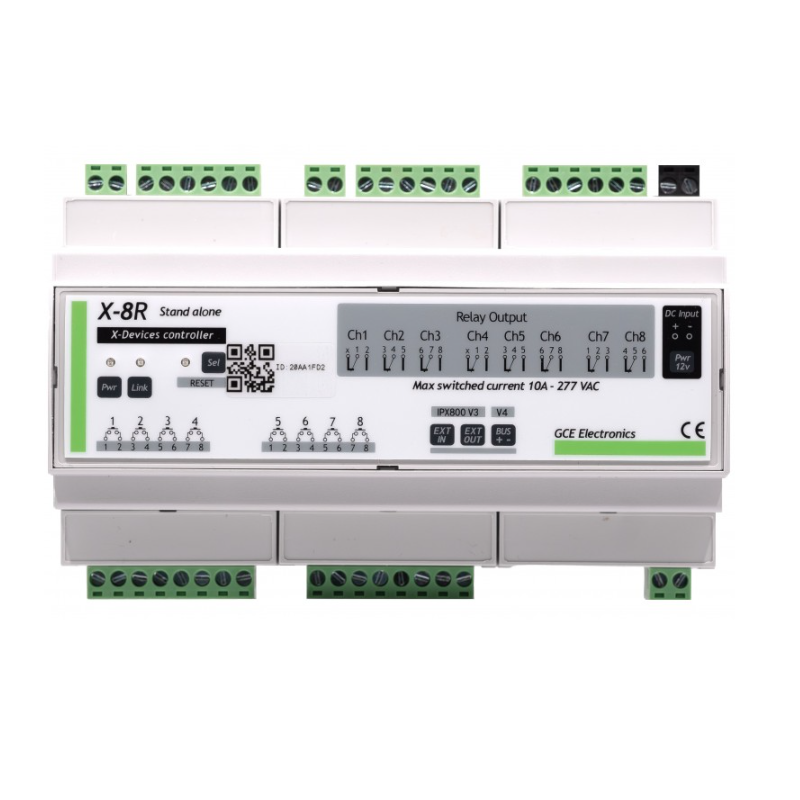

X8R addon for IPX800 V4 relay webserver

X8R addon

Increase the possibilities of your IPX800 V3 or V4

100% autonomus device

The X8R addon has 8 inputs and 8 outputs relays

It can operate tand-alone, without IPX800. Then inputs continue to control outputs, even if the IPX800 is out of connexion

3 operating modes are possible:

1. Mode 1 (default): the inputs control the relays (toggle switch mode)
2. Mode 2: the inputs controle the relays in ON/OFF mode (switch mode)
3. Mode 3: the inputs return their states (IPX800 V3 mode)

Note: The 8 X8R's inputs cannot be integrated into the IPX800 V4's scenario engine

Technical features:

• 8 digital inputs "all or nothing" (dry contact)

• 8 relay ouputs on 270V / 10A changeover (resistive)

• 1 IPX800 V4 BUS output

• 1 IPX800 V3 BUS In/Out

• Power supply: 12V continuous (sold separatly)

• Power consumption: 0.2W + 0.4W per relay (2.8W if 8 relays activated)

• Operating temperature: 14°F to 140°F with humidity 50%

• Protection class IP20

• Box for rail din mounting (provide 9 locations)

2 years warranty

Made in France
