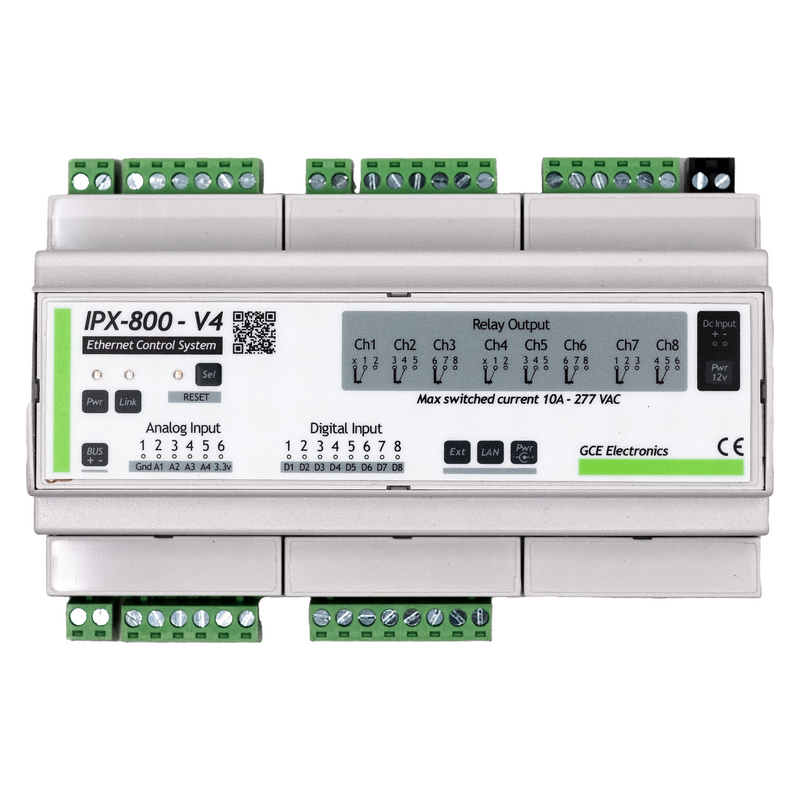

IPX800 V4 Ethernet din Controller

IPX800 V4 Ethernet PLC - 8 relays - Open PLC - Scenario engine

Automate, centralise and control all your connected equipment

The IPX800 V4 is a powerful, 100% autonomous Ethernet PLC. It works without a subscription or cloud service, and lets you remotely control your equipment: heating, watering, roller shutters, RGBW lights, gates and much more.

Accessible from any browser on a smartphone, tablet or PC, its customisable graphical interface gives you complete control of your installation. The GX scenario engine lets you create advanced combinatorial logic without any programming knowledge, thanks to a drag-and-drop system.

The IPX800 V4 is compatible with numerous extensions (X-DMX, X-ENO, X8R, X-24D) and offers an open API, secure HTTPS notifications, an integrated JavaScript editor and full management of EnOcean peripherals (with X-ENO).

Key features

• Standalone - no subscription or cloud
• 8 relays + 8 digital inputs natively
• Responsive web interface with customisable dashboards
• GX scenario engine with AND / OR / NOT logic
• Full API - secure HTTPS GET/POST notifications
• Compatible with X-DMX, X-ENO, X8R, X-24D extensions, etc.
• Controls EnOcean equipment, RGBW Mi-Light, network sensors
• Intuitive programming without code
• 2-year warranty - Made in France

In brief :

• 8 digital inputs (dry contact) - expandable to 56
• 8 relay outputs (2 NO, 6 inverted) - expandable to 56
• 4 inputs 10-bits analog
• 128  I/O + Virtual IO (32 virtual analog, 128 digital)
• 32 Ping Watchdog - 16 configurable pulse counters
• 255 programmable clocks - 255 DMX scenes (with X-DMX)
• Secure (TLS) e-mail and push notifications
• DynDNS support - NTP + internal clock
• System : IPX-OS4 with Webserver on flash memory
• Network: Ethernet 10/100 Mbps - IEEE 802.3az
• Power supply: 12 VDC (not included)
• Power consumption: 0.9 W (3.5 W with all relays activated)
• Temperature: -10 to +60°C @ 50% RH
• Protection rating: IP20
• Mounting: 9 DIN modules

Documentation, drivers and software available from our Download Center
