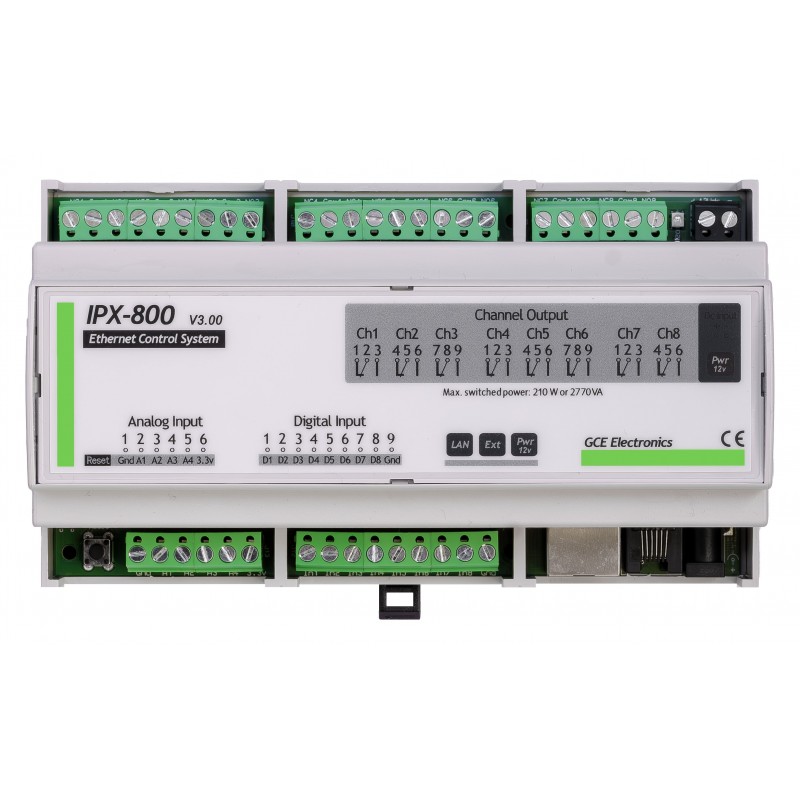

IPX800 V3.00 web relay board

IPX800 V3

Registered © model

A powerful, autonomous home automation interface

Control everything you want from the Internet: heating, watering, roller shutters, automatic gates, etc.

Accessible directly from your smartphone, tablet, iPhone, iPad, Android...

Compatible with most boxes, controllers and home automation software.

Expandable to 32 digital inputs / 32 digital outputs and 16 analogue inputs.

The IPX800 V3 is completely autonomous: no need for a PC or home automation box!

No subscription, no application and no external server required.

Fully customisable on-board website in ^HTML*.

Advanced function: Ping Watchdog

This function monitors your network connections and automatically restarts your box or server if necessary.

What you can do with the IPX800 V3

• Control your equipment remotely Manage
• access
• Automatically reboot servers
• Monitor sites in real time
• Send data to a MySQL database

In brief :

• 8 digital inputs (dry contact), expandable to 32
• 4 analogue inputs, expandable to 16
• 8 relay outputs (250V / 10A),
• expandable to 32
• 8 pulse counters
• 128 independent weekly timers
• I/O expansion port
• Android and web browser compatible
• Customised email alerts per event
• Motorised camera management
• Push notifications and data transmission via URL
• M2M protocol (TCP/IP),
• JSON support
• Analogue input thresholds (thermostat mode)
• NTP server, DHCP or fixed IP configuration
• DynDNS support
• Silent initialisation (no relay click)

Integration & Power supply

• DIN rail enclosure - 9 modules (160 x 90 x 60 mm)
• 12V DC power supply (not supplied)

Documentation, drivers and software available from our Download Center
