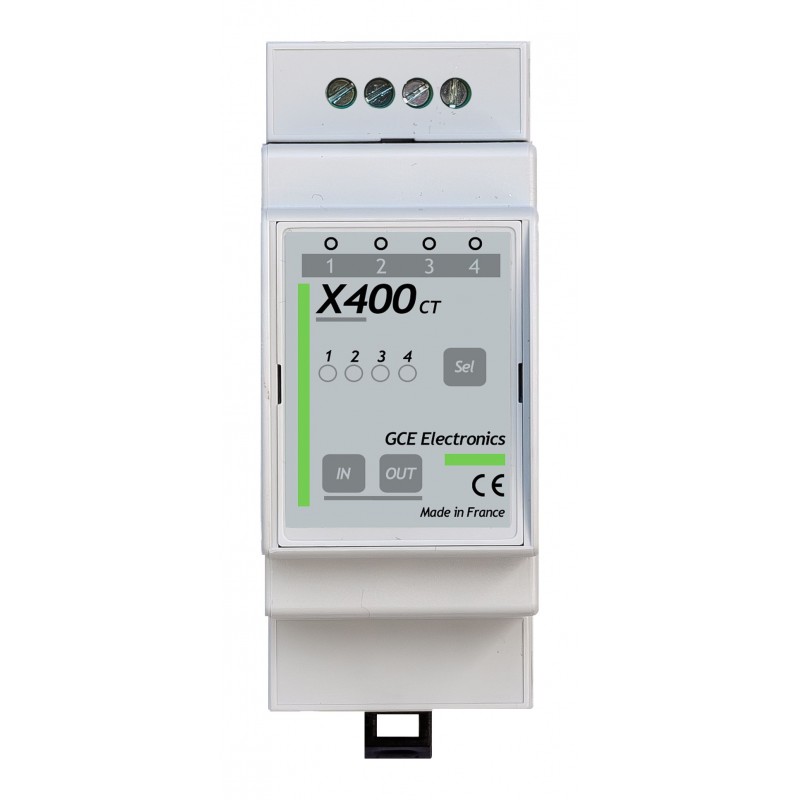

X400-CT for IPX800

X400-CT addon for IPX800*

Installation:

1. Connect the X400-CT addon to the IPX800 bus or to an X8R addon.
2. Choose the channel by pressing the SEL button.
3. Release the SEL button. Your X400-CT addon is configurated.
4. Connect your current clamps to your X400-CT addon.

Technical features:

• Allows current measurement with an IPX800.
• Addon can be conbined with X8R and X400 analog addons **
• Channel selection and LED display on the front panel.
• 4 inputs for current clamps.
• Bus output for combination with other addons.
• Simple installation, self powered by the IPX800 bus.

Firmwre 3.05.42 is required for X400-CT to be connected

* For operation with an IPX800 V4, an X-Bridge is necessary.

** Limited on 12 analog inputs per IPX800.

2 year warranty

Made in France
