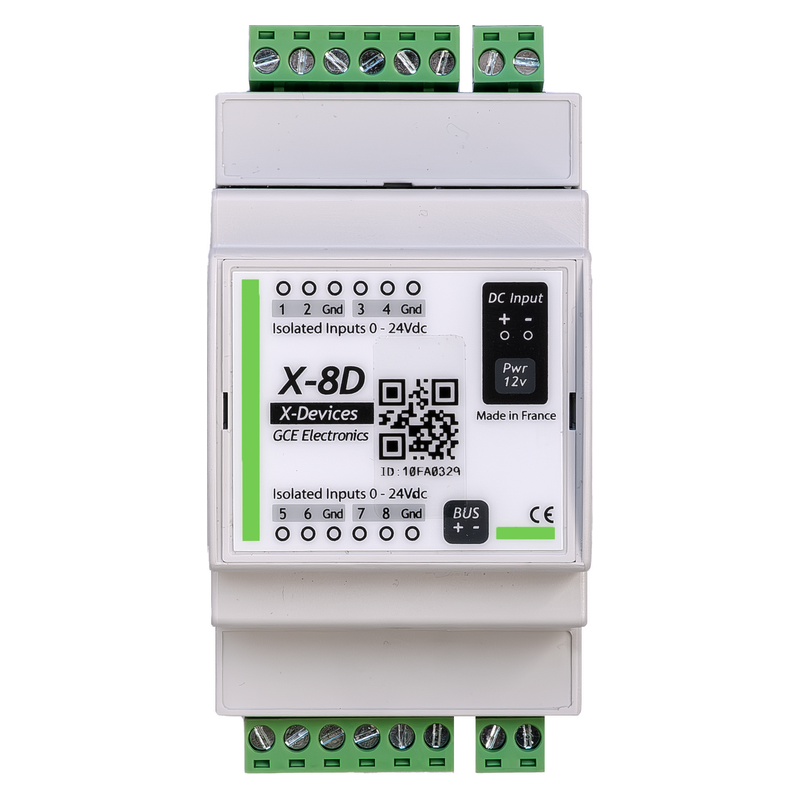

X-8D - DIN rail extension with 8 isolated digital inputs | GCE Electronics

X-8D addon

€115.68

Tax included

X-8D addon for IPX800-V4/V5 and EcoDevice RT. Allows the addition of 8 digital inputs .

Volume discounts

Quantity	Unit discount	You Save
5	5%	Up to €28.92
10	10%	Up to €115.68

Quantity

In stock

X-8D addon

The X-8D addon allows 8 optocoupled digital inputs to be integrated into the worl of the IPX800 V4/V5. It's possible to associate up to 6 X-8D to an IPX800 V4/V5 and thus add up to 48 optocoupled digital inputs.

The X-8D addon isn't a stand-alone device. Its features can only be accessed through the use of an IPX800 V4.

Technical Features:

- EBX extension port (Fieldbus, one pair + and -, category 6 network cable recommanded) for the IPX800 V4/V5 (cable not supplied).
- 8 optocoupled digital inputs 0 - 24Vdc (detection threshold of 4Vdc).
- Isolation of 3750 V rms.
- Possibility of adding up to 6 X-8D addons (for the IPX800 V4 or V5).
- 12V continuous power supply (not supplied)
- IP20
- Dimensions : 96 x 54 x 62 mm
- Consumption: < 0,6 W
2 years warranty

Made in France
