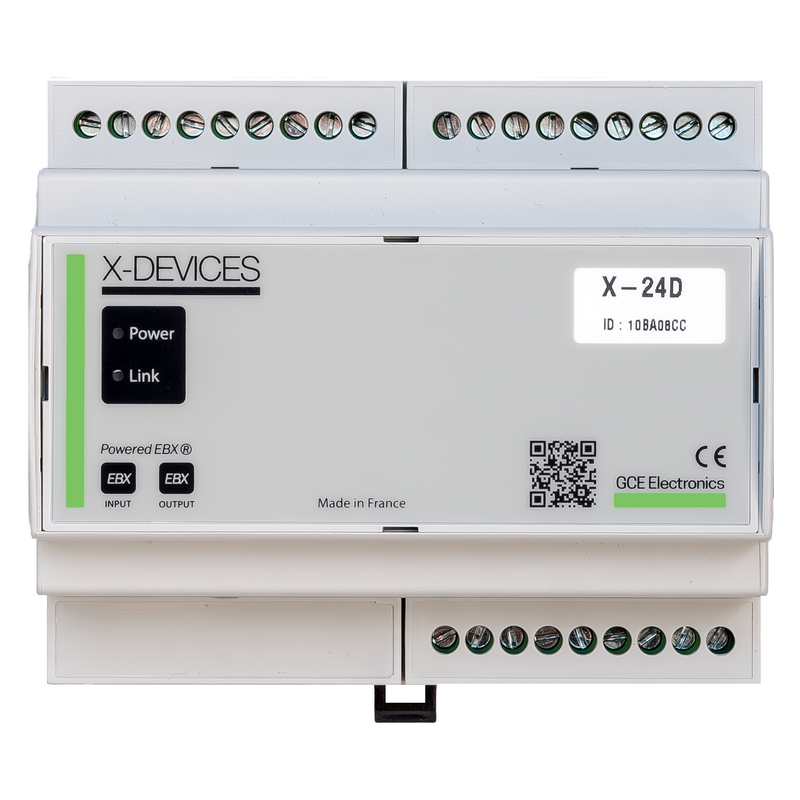

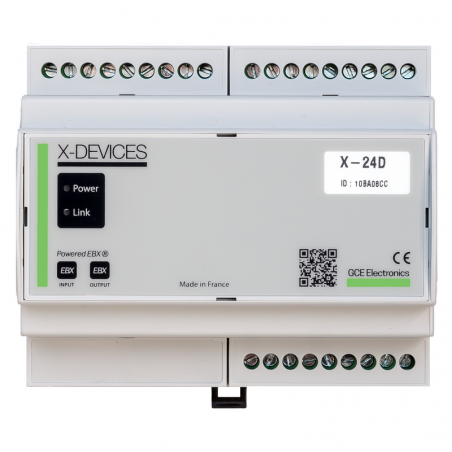

X - 24D Extension for IPX800 V4 & V5

The extension X - 24D allows to add 24 digital inputs on a IPX800.

Ideal for achieving an alarm system , add switches, push buttons etc ...

Easy to install:

1. Power  the X24D with 12V dc

2. Connect the 2 wire EBX bus from the IPX800 to the X-24D addon

3.  Enter the unique X-24D's identifier number in IPX800
4.  The X-24D addon is automatically recognized and operational


The X - 24D addon can be use until 300M with the native EBX bus.

Only 6 occupations in your electrical panel

Technical features:

• 24 Digital inputs (switched to ground)

• Consumption: 0.3W

• Communication on 2-wire EBX bus (300m)


2 years warranty

Made in France
