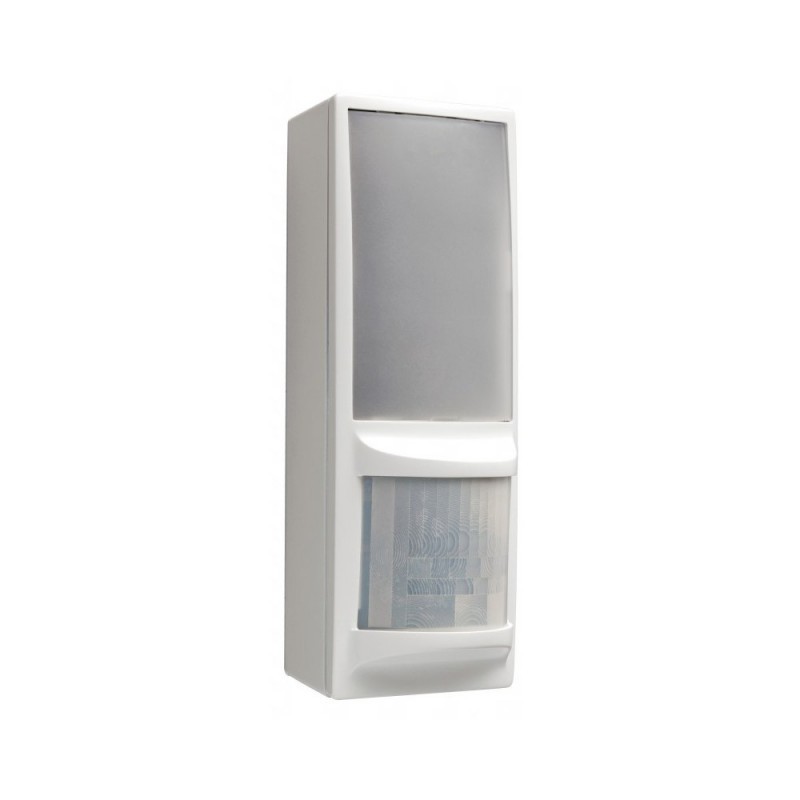

EnOcean motion detector

EnOcean motion detector - Autonomous and solar-powered - Detection + brightness

Detect movement and control your lighting without wires or batteries

This EnOcean motion detector is completely autonomous thanks to its integrated solar cells. It works without wires or batteries, and can be used for presence detection, automatic lighting or security applications.

Each time it detects movement, it sends a radio message immediately, and then every 2 minutes if movement persists. If there is no movement, a non-presence frame is sent after 10 and then 30 minutes. It can also be set to send a frame every hour.

Its detection range is 15 m, with a coverage angle of 154°. It also incorporates ambient light measurement, ideal for automatically adjusting lighting.

Key features

• Solar-powered - no batteries or wires
• Immediate message when motion detected
• No-presence message after 10 min then 30 min
• CR2032 battery option for use in low-light conditions
• Motion detection + brightness measurement

In brief:

• Power supply: integrated solar cells
• Option: CR2032 battery (not supplied)
• Minimum illuminance required: 200 lux for 3h/day
• Dimensions: 148 × 64 × 46 mm
• Colour: white
• Operating temperature :
• -10°C to +40°C
• Humidity: 20 to 95% (non-condensing)
• Detection range: 15 m
• Angle of coverage: 154°
• Recommended installation height: 1.80 m to 2.40 m

Documentation, drivers and software available from our Download Centre
