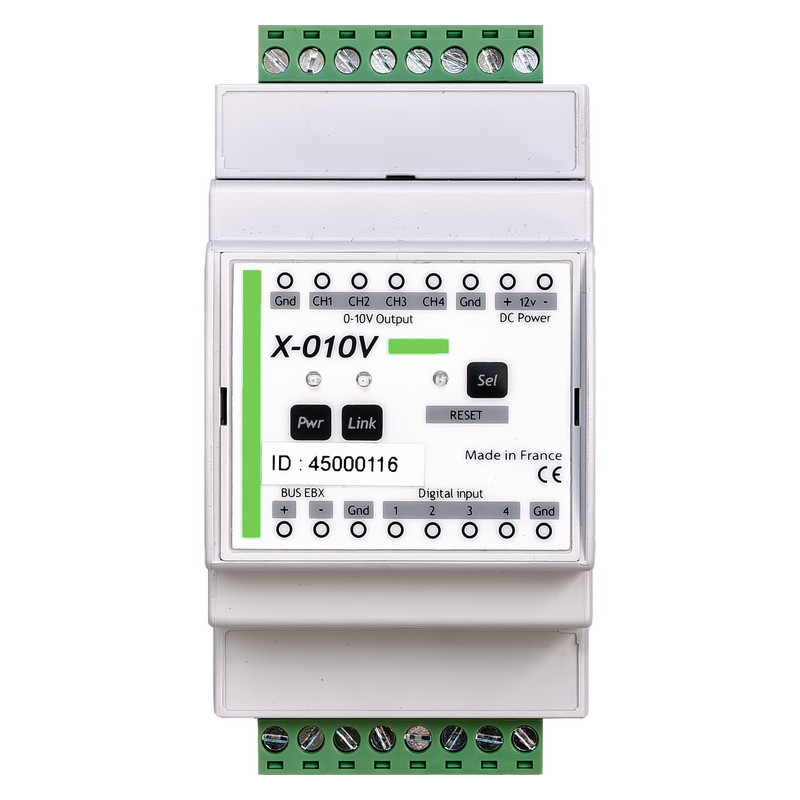

X-010V Addon

The X-010V addon allows to generate a variable voltage between 0V and 10V, thus allowing the piloting of 3-way valves or lighting dimmers for example.

Up to x X-010V addons can be connected to an IPX800 V4 or V5, each with 4 controllable outputs, for a total of 16 0/10V channels.

The X-010V addon can operate in stand-alone mode thanks to its 4 push-button inputs (on / off / dimming).

Technical Features:

• 12V continuous power supply (not supplied).

• Consumption: from 100mW to 900mW.

• 4 0-10V outputs (for connecting 0-10V peripherals).

• 1 EBX output compatible with IPX800 V4.

• 4 push button inputs (digital inputs).

• Maximum current per output: 15mA..

• 4 0/10V dimmable outputs.

• Dimensions: 90.5 x 53.5 x 65.5 mm (3 DIN slots)

2 years warranty

Made in France
