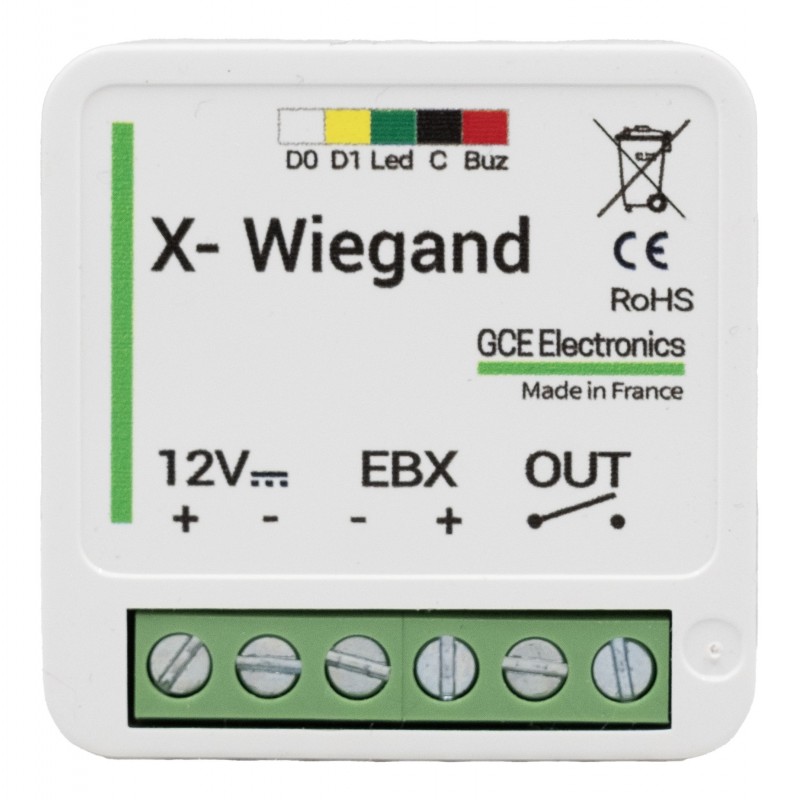

X-Wiegand - Access Control module

Access control Module

X-Wiegand makes IPX800 V5 compatible with the Wiegand protocol, widely used by access control hardware manufacturers. For example, it's possible to retrieve codes typed on a keypad to perform actions within IPX800 V5, such as operating an electric door lock, turning on a light, sending an e-mail and much more.

Multi-Zone and Multi-User management.

The small size of the box allows its installation in a flush-mounting box.

It requires 2 shielded pairs for connection to IPX800 V5.

It's possible to install 20 X-Wiegand with the same IPX800 V5.

Technical characteristics :

• 12V continuous power supply (not included)

• Expansion EBX port (+/- shielded pair) for IPX800 V5

• Consumption less than 100mW (not loaded)

• Power On indicator

• 5 points external port for Wiegand Connection (D0, D1 et GND), and other equipments (2 open collector outputs allowing the connection of a buzzer and Led for example).
• Dimensions (L x l x h en mm) : 41 x 41 x 20
• Weight : 30gr.
• Waterproofing class : IP30
• Made in France
• 2 years warranty
