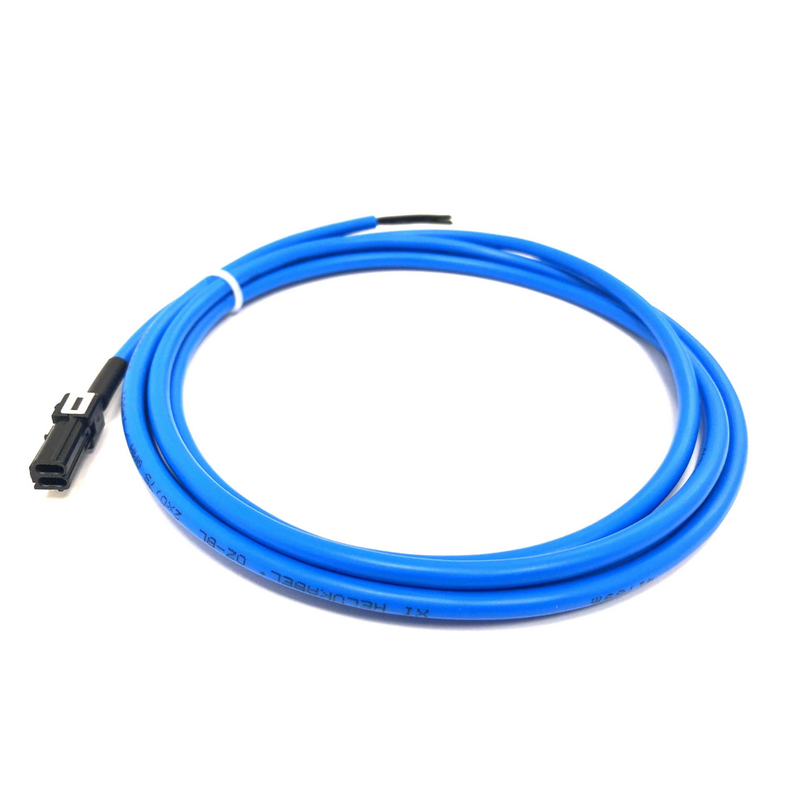

JAE connector for Gazpar meter

Cable for Gazpar meter - JAE connector - Compatible with RF-PULSE, IPX800, Ecodevices

Easily connect your Gazpar meter to your home automation equipment or LoRaWAN transmitter

This cable is specially designed to connect a Gazpar meter to a pulse input on RF-PULSE, IPX800 or Ecodevices modules. It is fitted with a JAE connector for quick and easy connection.

Compliant with intrinsic safety standards DIN EN 60079-14 and IEC 60079-14, this cable is designed to operate in demanding environments. Its PVC sheath and fire-resistant structure guarantee reliability and durability over time.

Key features

• Compatible with Gazpar meter with JAE connector
• Direct connection to RF-PULSE, IPX800 and Ecodevices pulse inputs
• Intrinsic safety certified to DIN EN 60079-14 and IEC 60079-14
• Self-extinguishing, flame-retardant cable
• Available in lengths from 2 to 10 metres (others on request)

In brief:

• Available lengths: 2 to 10 metres
• Protective sheath
• : PVC
• Strands: 2 x 0.75 mm² numbered
• Standards: DIN EN 60079-14, IEC 60079-14
• Operating temperature: -15 to +80°C
• Properties: self-extinguishing, flame retardant

Documentation, drivers and software available from our Download Centre
