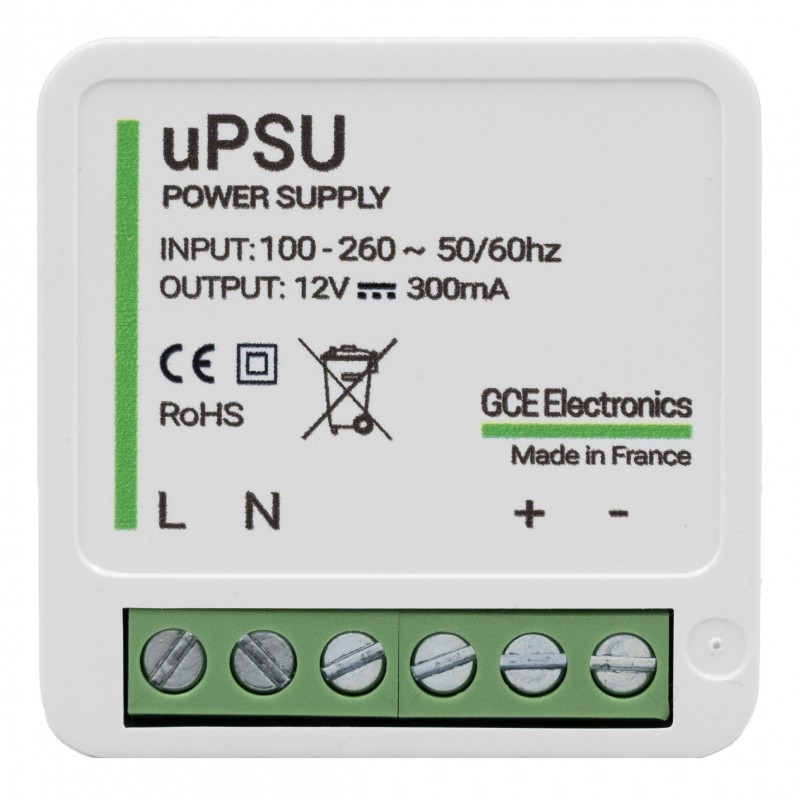

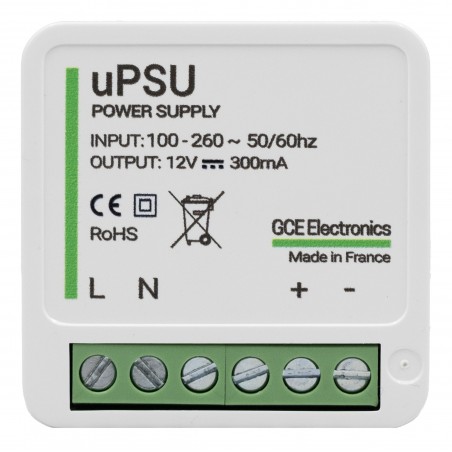

Miniature isolated AC/DC power supply

This switching power supply provides a power of 3W @ 12V DC

It has excellent efficiency and very low power empty consumption.

Very small, it can be housed in a electrical wall box.

Technical caractéristics

• Very small size: 4 x 4 x 2 cm
• Input voltage from 100 to 260Vac
• Output voltage: 12VDC
• Max output power: 3Watts
• No load power consumption < 0.1W
• Operating Temperature: -10 à +45°c
• Output short circuit, over-current protection
• Isolation 3kV
• Class II
• MTBF MIL-HDBK-217F@25°c > 1000.000 h
• CE, EN55032
• Made in France
